LDX-026A Large TCT Saw Blade Full CNC Grinding Machine
The common faults of alloy circular saw blade automatic gear grinding machine mainly include the following aspects:
1,Reduced grinding accuracy: the size deviation of the circular saw blade after grinding is large, which affects the use effect.
2,Low grinding efficiency: there are pauses and stuck phenomena in the grinding process, which affect the production efficiency.
3,Excessive noise: The noise generated during the operation of the equipment exceeds the standard, which affects the health of workers.
4,Excessive vibration: Strong vibration occurs during the operation of the equipment, which affects the service life of the equipment.
5,Hydraulic system failure: hydraulic system leakage, insufficient pressure and other problems, affecting the normal operation of the equipment.
| Main Technical Parameters : |
| Range of external diameter of processing:￠300-￠1500mm |
| Inner bore of saw blade:￠10-220mm |
| Thickness of saw web (steel plate):1-12mm |
| Pitch range:7-100mm |
| Tooth face angle:5°~+30° |
| Tooth top dorsal angle:6-45° |
| Tooth left/right gradient: Tooth top/tooth face 45° |
| Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min |
| Grinding speed:0.5-6mm/s |
| Working speed: Max. 20 teeth/min |
| Grinding wheel dimensions (outer diameter * bore): (￠125mm*￠32mmX2mm) |
| Negative chamfer grinding: -27° |
| Grinding head rotation angle: 90° and 180° |
| Grinding speed: 26m/s |
| Coolant pump flux:501/min |
| Coolant cylinder volume: 85L |
| Total power: 2.2KW |
| Voltage:three-phase 380v |
| Total weight of equipment:1000KG |
| Appearance(Long*Width*Height):1600X1300X1900mm |
| |
| Technical features: |
| This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time. |
| |
| 1. Preset many groups of tooth types and one-key multifunctional operation. |
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.
|
Product Tags:
|
|

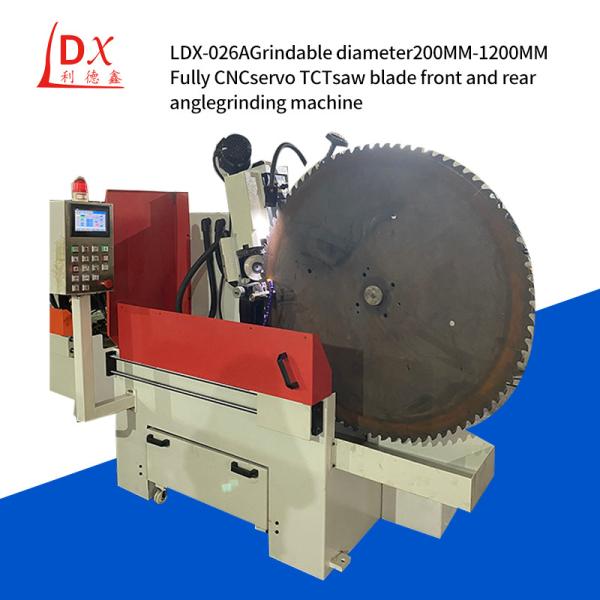

LDX-026A Large TCT Saw Blade Full CNC Grinding Machine Images
|
